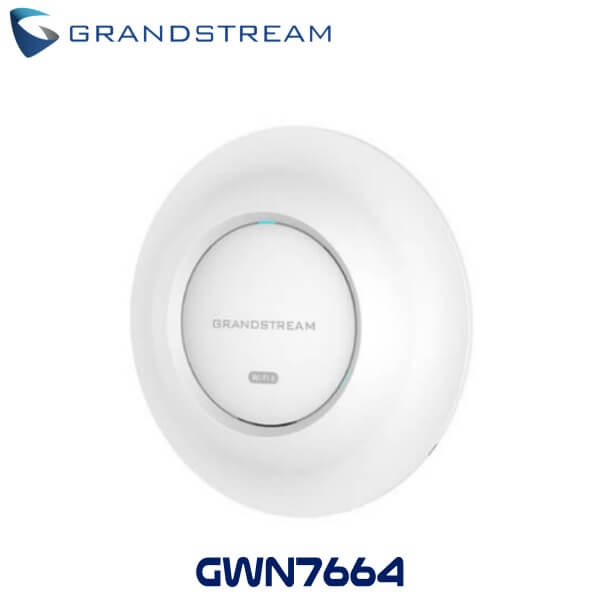

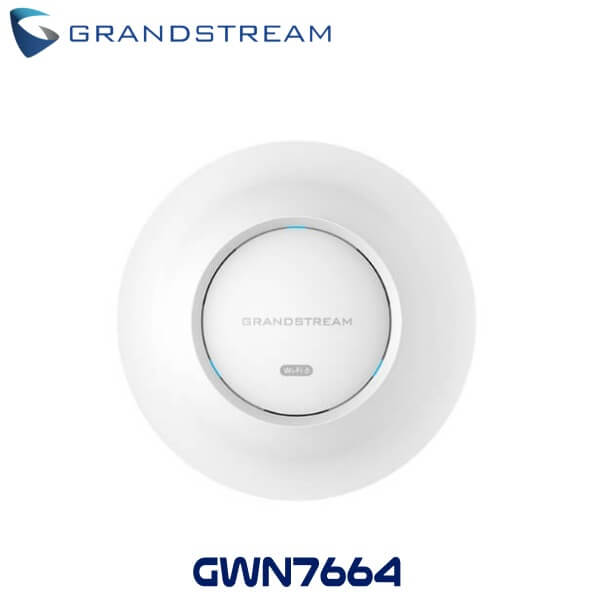

Grandstream GWN7664 Wi-Fi 6 Access Point

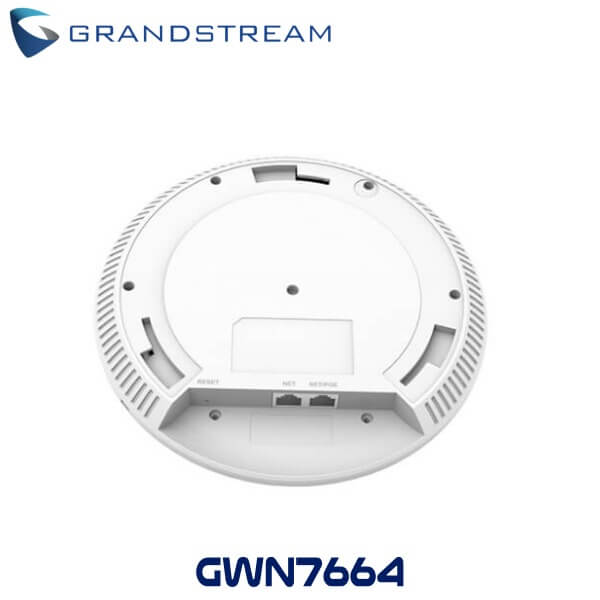

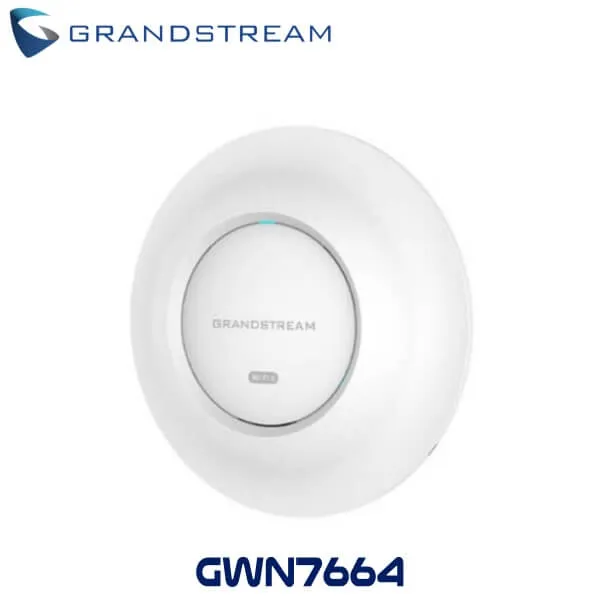

Grandstream GWN7664 Wi-Fi 6 Access Point - Image 2
Grandstream GWN7664 Wi-Fi 6 Access Point - Image 3

Grandstream GWN7664 Wi-Fi 6 Access Point

Grandstream GWN7664 Wi-Fi 6 Access Point

The Grandstream GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, meticulously designed for medium-to-large sized businesses, multi-floor buildings, residential settings, and commercial locations throughout Dubai and the UAE. This high-performance indoor AP delivers an impressive 3.55Gbps aggregate wireless throughput and features both a 1G and a 2.5G network port for robust wired connectivity. The GWN7664 incorporates advanced dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology, significantly boosting network capacity and efficiency, making it perfectly suited for high-density environments in Dubai. It offers an extensive coverage range of up to 175 meters and can support over 750 concurrent Wi-Fi client devices. Advanced QoS capabilities ensure optimal performance for critical, low-latency applications, a vital feature for businesses in Abu Dhabi. The GWN7664 also supports mesh networking for flexible deployment and captive portals for enhanced user engagement. As a premier Grandstream distributor in Dubai, we endorse the GWN7664 for its superior performance, high client capacity, and comprehensive feature set for demanding UAE enterprises.

Category:

Description

Grandstream GWN7664 Wi-Fi 6 Access Point

The Grandstream GWN7664 is engineered to meet the escalating wireless demands of modern enterprises in Dubai, leveraging the advanced capabilities of Wi-Fi 6 (802.11ax). It delivers a substantial aggregate wireless throughput of 3.55Gbps, coupled with a 3.5Gbps aggregate wired throughput via its 1G and 2.5G ports. This ensures that businesses in Dubai can support a multitude of connected devices and data-intensive applications without experiencing network bottlenecks. The integration of dual-band 4×4:4 MU-MIMO (Multi-User, Multiple Input, Multiple Output) and both Downlink (DL) and Uplink (UL) OFDMA (Orthogonal Frequency Division Multiple Access) technology is a cornerstone of its performance. These features allow the Grandstream GWN7664 to communicate with numerous devices simultaneously and efficiently allocate bandwidth, drastically reducing latency and enhancing overall network capacity. This makes it an ideal solution for high-traffic commercial locations, large offices, and educational institutions in Dubai. For businesses seeking a future-proof Grandstream access point in Dubai, the Grandstream GWN7664 offers exceptional power and efficiency.

Superior Capacity and Coverage for Large-Scale Deployments in Abu Dhabi

One of the standout features of the Grandstream GWN7664 is its ability to handle a very high number of concurrent users, supporting over 750 Wi-Fi client devices. This immense capacity makes it an excellent choice for large-scale deployments in Abu Dhabi, such as convention centers, shopping malls, large corporate offices, and university campuses where hundreds or even thousands of users require simultaneous wireless access. Complementing its high client capacity is an impressive coverage range of up to 175 meters. This extensive reach ensures that reliable Wi-Fi connectivity is available throughout large indoor spaces, potentially reducing the total number of access points needed and simplifying network design for organizations in Abu Dhabi. The combination of high-density support and broad coverage makes the Grandstream GWN7664 a cost-effective and powerful solution for any Grandstream supplier in UAE catering to large venues.

Optimized for Real-Time Applications with Advanced QoS in the UAE

In today’s fast-paced business environment in the UAE, the performance of real-time applications like Voice over IP (VoIP), video conferencing, and cloud-based services is critical. The Grandstream GWN7664 is equipped with advanced Quality of Service (QoS) features that allow network administrators to prioritize these latency-sensitive applications. By ensuring that critical data packets receive preferential treatment, the GWN7664 minimizes delays and jitter, leading to a superior user experience for voice and video communications across Dubai and Abu Dhabi. This focus on low-latency performance is essential for maintaining productivity and facilitating seamless collaboration within organizations throughout the UAE. A knowledgeable Grandstream partner in UAE can help businesses configure the GWN7664’s QoS settings to align perfectly with their specific operational needs and application priorities.

Flexible Network Management and Deployment in Dubai

The Grandstream GWN7664 provides remarkable flexibility in both network management and deployment, catering to diverse IT infrastructures in Dubai. It features an embedded controller within its intuitive web user interface, capable of managing up to 50 local GWN series access points. This controller-less architecture simplifies deployment for small to medium-sized businesses in Dubai by eliminating the need for separate controller hardware. For larger or distributed enterprises, the GWN7664 is fully compatible with GWN, Cloud, Grandstream’s free cloud-based Wi-Fi management platform, and GWN Manager, an on-premise software controller. These platforms offer centralized control, monitoring, and provisioning for an unlimited number of GWN access points across multiple locations. Furthermore, support for mesh networking allows for easy and scalable expansion of Wi-Fi coverage without extensive cabling, ideal for complex building layouts in Dubai. Grandstream support in Dubai is available to assist with optimizing these management and deployment features.

Robust Security Architecture for Protected Wireless Access in the UAE

Grandstream prioritizes network security, and the Grandstream GWN7664 is fortified with a robust security architecture to protect wireless networks in the UAE. It supports the latest WPA3 encryption standard, providing enhanced protection against password cracking and other wireless threats. Critical security features include anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificates per device, and randomly generated default passwords, all designed to prevent unauthorized access and ensure firmware integrity. The GWN7664 also supports advanced security options such as client isolation, rogue AP detection, and VLANs for network segmentation, allowing businesses in Dubai and Abu Dhabi to create secure and isolated network environments for different user groups or departments. Investing in the Grandstream GWN7664 Wi-Fi access point in Dubai ensures that businesses benefit from enterprise-grade security, safeguarding their valuable data and maintaining a trusted wireless environment.

Specifications:

  • Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
  • Antennas: 8 individual internal antennas (4 for 2.4GHz, 4 for 5GHz)
  • Wi-Fi Data Rates:
    • 5GHz: 802.11ax: 8 Mbps to 2402 Mbps
    • 4GHz: 802.11ax: 8 Mbps to 1147 Mbps
    • (Actual rates vary based on environmental factors, client devices, etc.)
  • Frequency Bands:4GHz radio: 2412 – 2484 MHz; 5GHz radio: 5180 – 5825 MHz
  • Channel Bandwidth:4G: 20 and 40 MHz; 5G: 20, 40, 80 and 160 MHz
  • Wi-Fi Security: WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise
  • MU-MIMO: 4×4:4 2.4GHz (DL/UL), 4×4:4 5GHz (DL/UL)
  • OFDMA: DL/UL OFDMA
  • Coverage Range: Up to 175 meters (574 feet)
  • Maximum TX Power:4G: 27dBm; 5G: 25dBm (varies by country/region)
  • SSIDs: 32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
  • Concurrent Clients: 750+
  • Network Interfaces: 1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 100/1000/2500 Base-T Ethernet Port
  • Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
  • Mounting: Indoor wall mount or ceiling mount (kits included)
  • LEDs: 3x tri-color LEDs for device tracking and status indication
  • Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
  • QoS:11e/WMM, VLAN, TOS
  • Network Management: Embedded controller can manage up to 50 local GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN APs; GWN Manager offers a premise-based software controller
  • Power and Green Energy Efficiency: PoE/PoE+ 802.3af/at; Max Power Consumption: 18W
  • Environmental:
    • Operation: 0°C to 50°C (32°F to 122°F)
    • Storage: -30°C to 60°C (-22°F to 140°F)
    • Humidity: 10% to 90% Non-condensing
  • Physical:
    • Unit Dimension: 205.3mm (L) x 205.3mm (W) x 45.9mm (H)
    • Unit Weight: 714g
  • Package Content: GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
  • Compliance: FCC, CE, RCM, IC, UKCA, Wi-Fi CERTIFIED™ 6
