Description

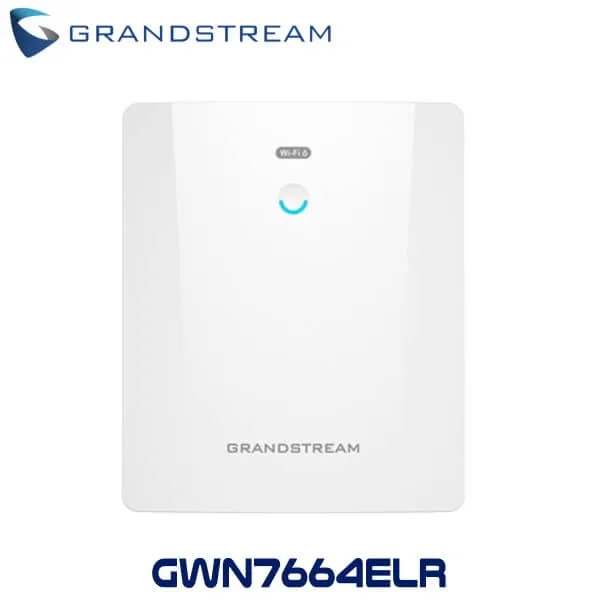

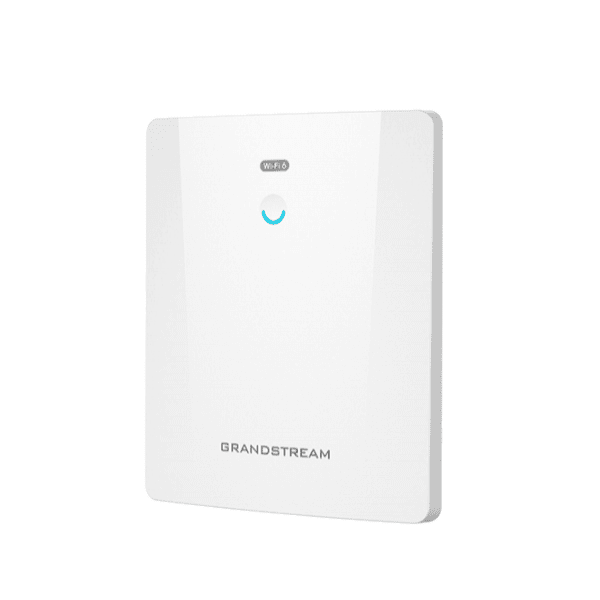

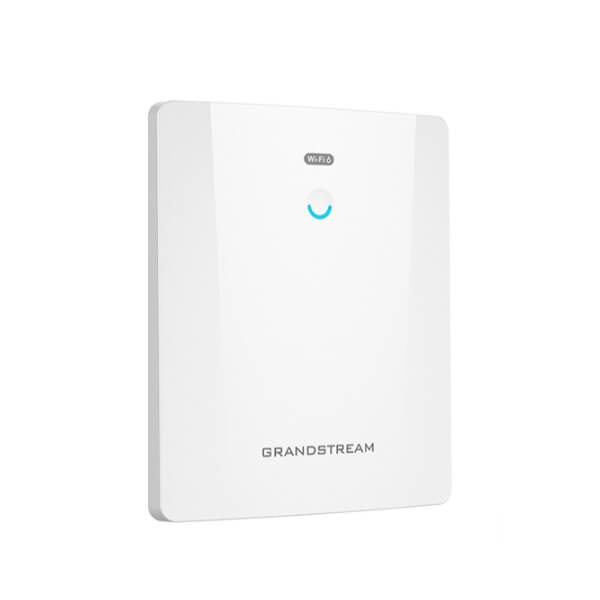

Grandstream GWN7664ELR High-Performance Outdoor Long-Range AX6000 Wi-Fi 6 Access Point

Unrivaled Outdoor AX6000 Wi-Fi 6 Performance for Dubai

The Grandstream GWN7664ELR is designed to deliver uncompromising Wi-Fi 6 performance in the most challenging outdoor environments across Dubai. It achieves a staggering 6Gbps aggregate wireless throughput, leveraging the full power of the 802.11ax standard. This, combined with dual-band 4×4:4 MU-MIMO and OFDMA technology, ensures exceptional network capacity, significantly reduced latency, and superior efficiency, even when numerous devices are connected. The GWN7664ELR is equipped with both a 2.5Gbps RJ45 port and a 2.5Gbps SFP port, providing ultra-fast and flexible wired connectivity options to support its immense wireless capabilities. This makes it the perfect solution for large outdoor venues in Dubai, such as stadiums, university campuses, smart city projects, and industrial complexes that demand the highest level of wireless performance. For businesses seeking the ultimate Grandstream access point in Dubai for outdoor applications, the GWN7664ELR stands in a class of its own.

Extreme Long-Range Coverage and Durability for Abu Dhabi and UAE

Providing reliable Wi-Fi over vast outdoor areas in Abu Dhabi and the UAE requires access points with exceptional range and durability. The Grandstream GWN7664ELR excels in both aspects, offering an extended coverage range of up to 300 meters. This remarkable reach is supported by its sophisticated internal antenna design, which includes the flexibility of 8 internal antennas, allowing for optimized signal propagation in diverse outdoor settings. To withstand the harsh climatic conditions of Abu Dhabi, the GWN7664ELR features a rugged IP67-rated weatherproof casing. This ensures complete protection against dust and water ingress, making it highly resilient to extreme temperatures, humidity, and precipitation. This level of durability guarantees consistent operation and a long service life, making it a reliable choice for any Grandstream supplier in UAE focusing on robust outdoor solutions for Abu Dhabi.

High-Density Client Support for Large-Scale UAE Deployments

In addition to its impressive range and speed, the Grandstream GWN7664ELR is engineered to support a high density of users, accommodating over 512 concurrent Wi-Fi client devices. This high capacity is crucial for public Wi-Fi hotspots, large outdoor events, transportation hubs, and expansive enterprise campuses across the UAE where a multitude of users require simultaneous wireless access. The GWN7664ELR ensures that even in crowded outdoor environments, each user experiences a stable and responsive connection. Advanced Quality of Service (QoS) features further enhance performance by prioritizing critical traffic, ensuring that applications like outdoor surveillance, public safety communications, and real-time data streaming operate flawlessly. A Grandstream partner in UAE can help design and implement high-density outdoor Wi-Fi networks using the GWN7664ELR for optimal performance in Dubai and Abu Dhabi.

Flexible Management and Advanced Security for Dubai Outdoor Networks

Managing a distributed outdoor Wi-Fi network in Dubai requires powerful and flexible tools. The Grandstream GWN7664ELR offers multiple management options, including an embedded controller for managing up to 50 local GWN APs. For larger or geographically dispersed deployments, GWN.Cloud (Grandstream’s free cloud management platform) and GWN Manager (on-premise software controller) provide centralized control, monitoring, and provisioning. Security is a top priority, and the GWN7664ELR is equipped with enterprise-grade security features, including WPA3 encryption, anti-hacking secure boot, critical data/control lockdown via digital signatures, unique security certificates, and random default passwords. These features protect against unauthorized access and ensure the integrity of the wireless network, providing peace of mind for businesses and public entities in Dubai. Grandstream support in Dubai is available to assist with the secure and efficient management of GWN7664ELR deployments.

Future-Proofing Outdoor Connectivity in the UAE with Cutting-Edge Technology

The Grandstream GWN7664ELR represents the pinnacle of outdoor Wi-Fi 6 technology, offering businesses and organizations in the UAE a future-proof solution for their wireless connectivity needs. Its combination of extreme speed, long-range coverage, high client capacity, robust weatherproof design, and advanced security features makes it an ideal investment for any outdoor deployment requiring uncompromising performance and reliability. Whether it’s for enhancing guest experiences in large resorts, enabling smart city applications, or providing critical connectivity for industrial operations, the GWN7664ELR delivers. Choosing the Grandstream GWN7664ELR Wi-Fi access point in Dubai means investing in a solution that can meet the evolving demands of outdoor wireless networking for years to come.

Specifications:

• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antennas: 8 individual internal antennas (4 for 2.4GHz, 4 for 5GHz), flexibility of 8 internal antennas
• Wi-Fi Data Rates:
  • 5GHz: 802.11ax: 8 Mbps to 4804 Mbps
  • 4GHz: 802.11ax: 8 Mbps to 1147 Mbps
  • (Actual rates vary based on environmental factors, client devices, etc.)
• Frequency Bands:4GHz radio: 2412 – 2484 MHz; 5GHz radio: 5180 – 5825 MHz
• Channel Bandwidth:4G: 20 and 40 MHz; 5G: 20, 40, 80 and 160 MHz
• Wi-Fi Security: WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise
• MU-MIMO: 4×4:4 2.4GHz (DL/UL), 4×4:4 5GHz (DL/UL)
• OFDMA: DL/UL OFDMA
• Coverage Range: Up to 300 meters (984 feet)
• Maximum TX Power:4G: 27dBm; 5G: 25dBm (varies by country/region)
• SSIDs: 32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
• Concurrent Clients: 512+
• Network Interfaces: 1x autosensing 100/1000/2500 Base-T RJ45 Port, 1x 100/1000/2500 SFP Port
• Auxiliary Ports: 1x Reset Pinhole
• Mounting: Outdoor wall mount or pole mount (kits included)
• LEDs: 3x tri-color LEDs for device tracking and status indication
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS:11e/WMM, VLAN, TOS
• Network Management: Embedded controller can manage up to 50 local GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN APs; GWN Manager offers a premise-based software controller
• Power and Green Energy Efficiency: PoE/PoE+ 802.3af/at; Max Power Consumption: 22.5W
• Environmental:
  • Operation: -30°C to 70°C (-22°F to 158°F)
  • Storage: -40°C to 80°C (-40°F to 176°F)
  • Humidity: 100% (Weatherproof, IP67-rated)
• Physical:
  • Unit Dimension: 260mm(L) x 251mm(W) x 56.6mm(H)
  • Unit Weight: 1.15kg
• Package Content: GWN7664ELR 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
• Compliance: FCC, CE, RCM, IC, UKCA, Wi-Fi CERTIFIED™ 6
• Weatherproof Grade: IP67
