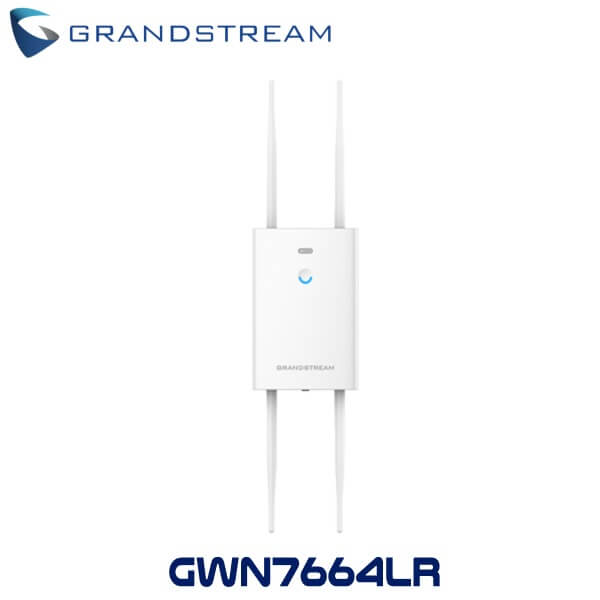

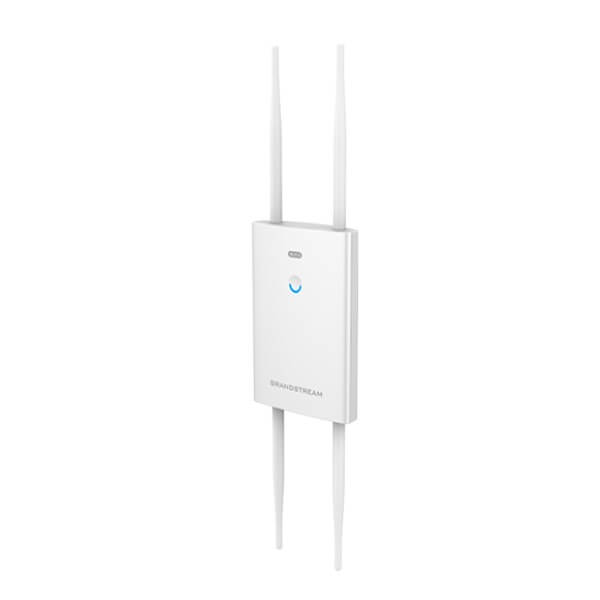

Grandstream GWN7664LR Outdoor Long-Range Wi-Fi 6 Access Point

The Grandstream GWN7664LR is a high-performance outdoor long-range 802.11ax Wi-Fi 6 access point, engineered for medium-to-large businesses and enterprises in Dubai and across the UAE that require extensive and robust wireless coverage in outdoor environments. This powerful AP delivers an impressive 3.55Gbps aggregate wireless throughput and features a 2.5Gbps wired port, ensuring high-speed connectivity even over extended distances. The GWN7664LR incorporates advanced dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design with 4 detachable/changeable dual-band antennas, providing stronger anti-interference and a more stable connection. It boasts an exceptional coverage range of up to 300 meters and supports over 750 concurrent Wi-Fi client devices. Its IP67-rated weatherproof casing ensures durability against harsh outdoor conditions in Dubai and Abu Dhabi. As a leading Grandstream distributor in Dubai, we highlight the GWN7664LR for its exceptional long-range capabilities, high capacity, and resilience for demanding outdoor UAE deployments.

Category:

Description

Grandstream GWN7664LR Outdoor Long-Range Wi-Fi 6 Access Point

Superior Long-Range Outdoor Wi-Fi 6 for Dubai Expanses

The Grandstream GWN7664LR is specifically designed to provide expansive and high-performance Wi-Fi 6 coverage for large outdoor areas in Dubai. It achieves an impressive aggregate wireless throughput of 3.55Gbps, powered by the latest 802.11ax Wi-Fi 6 standard. This ensures that businesses and public entities in Dubai can deliver fast and reliable wireless access across large campuses, parks, industrial yards, or outdoor event spaces. A key feature of the Grandstream GWN7664LR is its remarkable coverage range, extending up to 300 meters. This is facilitated by its sophisticated internal antenna design and the inclusion of four detachable/changeable dual-band antennas, allowing for optimized signal propagation and flexibility in various deployment scenarios. The use of dual-band 4×4:4 MU-MIMO and DL/UL OFDMA technologies further enhances network efficiency and capacity, ensuring that even at long distances, users in Dubai experience stable and high-speed connections. For organizations needing a premier Grandstream access point in Dubai for extensive outdoor coverage, the GWN7664LR is an outstanding solution.

Uncompromised Durability for Harsh Abu Dhabi and UAE Climates

Outdoor electronic equipment in Abu Dhabi and the broader UAE region must withstand extreme weather conditions, including intense heat, dust, and occasional moisture. The Grandstream GWN7664LR is built for such environments, featuring a robust IP67-rated weatherproof casing. This high level of ingress protection means the access point is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes, making it exceptionally resilient for outdoor installations. This durability ensures continuous operation and minimizes the risk of damage from environmental factors, which is crucial for maintaining reliable Wi-Fi services in demanding Abu Dhabi locations. The Grandstream GWN7664LR’s rugged construction translates to a longer operational lifespan and reduced maintenance requirements, offering a dependable outdoor wireless solution for any Grandstream supplier in UAE focusing on resilience.

High Capacity and Advanced Features for UAE Public and Enterprise Networks

The Grandstream GWN7664LR is not only about range and durability; it also excels in handling high-density client environments, supporting over 750 concurrent Wi-Fi devices. This makes it ideal for public Wi-Fi deployments in parks or city centers in the UAE, as well as for large enterprise campuses or outdoor industrial sites. Advanced features such as advanced QoS ensure that critical applications receive prioritized bandwidth, maintaining performance for latency-sensitive services like outdoor security cameras or public announcement systems. The GWN7664LR also supports mesh networking, allowing for flexible and scalable network expansion without the need for extensive cabling. Captive portal functionality provides opportunities for branding and user engagement in public Wi-Fi scenarios. A Grandstream partner in UAE can assist in leveraging these advanced features to create tailored outdoor Wi-Fi solutions for diverse needs across Dubai and Abu Dhabi.

Flexible and Secure Management for Outdoor Deployments in Dubai

Managing outdoor access points across large areas in Dubai requires flexible and secure tools. The Grandstream GWN7664LR offers multiple management options, including an embedded controller within its web UI for managing up to 50 local GWN APs. For more extensive or distributed networks, GWN.Cloud (Grandstream’s free cloud management platform) and GWN Manager (on-premise software controller) provide centralized control, monitoring, and provisioning capabilities. Security is paramount, and the GWN7664LR incorporates robust features like WPA3 encryption, anti-hacking secure boot, critical data/control lockdown via digital signatures, unique security certificates, and random default passwords. These measures protect the network from unauthorized access and ensure data integrity for users in Dubai. Grandstream support in Dubai is available to guide organizations in implementing secure and efficient management practices for their GWN7664LR deployments.

Optimized Connectivity with Detachable Antennas and 2.5G Port in the UAE

To ensure optimal connectivity and adaptability, the Grandstream GWN7664LR features four detachable/changeable dual-band antennas. This allows administrators in the UAE to select or orient antennas to best suit the specific coverage requirements of their outdoor environment, potentially overcoming obstacles or focusing signals in desired directions. Furthermore, the inclusion of a 2.5Gbps wired network port provides a high-speed uplink to the core network, ensuring that the wireless capabilities of the access point are not bottlenecked by the wired connection. This is particularly important when serving a large number of high-bandwidth users. These design considerations demonstrate Grandstream’s commitment to providing versatile and high-performance solutions. For businesses looking for a Grandstream GWN7664LR Wi-Fi access point in Dubai that offers both flexibility and power, these features are significant advantages.

Specifications:

  • Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
  • Antennas: 4 detachable/changeable dual-band external antennas
  • Wi-Fi Data Rates:
    • 5GHz: 802.11ax: 8 Mbps to 2402 Mbps
    • 4GHz: 802.11ax: 8 Mbps to 1147 Mbps
    • (Actual rates vary based on environmental factors, client devices, etc.)
  • Frequency Bands:4GHz radio: 2412 – 2484 MHz; 5GHz radio: 5180 – 5825 MHz
  • Channel Bandwidth:4G: 20 and 40 MHz; 5G: 20, 40, 80 and 160 MHz
  • Wi-Fi Security: WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise
  • MU-MIMO: 4×4:4 2.4GHz (DL/UL), 4×4:4 5GHz (DL/UL)
  • OFDMA: DL/UL OFDMA
  • Coverage Range: Up to 300 meters (984 feet)
  • Maximum TX Power:4G: 27dBm; 5G: 26dBm (varies by country/region)
  • SSIDs: 32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
  • Concurrent Clients: 750+
  • Network Interfaces: 1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 100/1000/2500 Base-T Ethernet Port
  • Auxiliary Ports: 1x Reset Pinhole

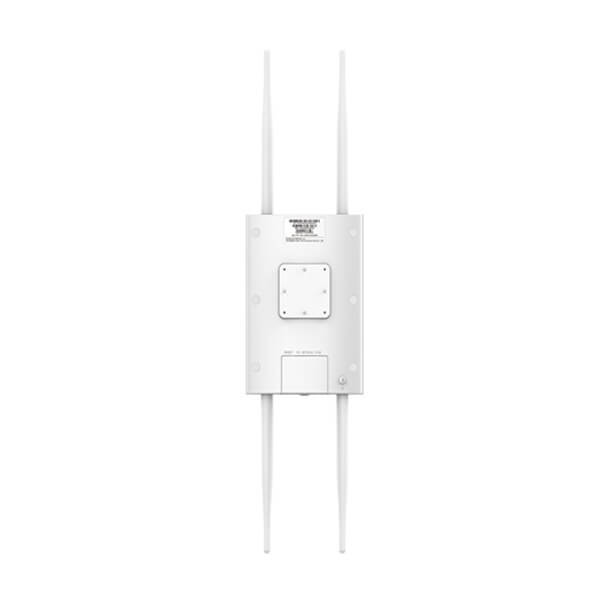

  • Mounting: Outdoor wall mount or pole mount (kits included)
  • LEDs: 3x tri-color LEDs for device tracking and status indication
  • Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
  • QoS:11e/WMM, VLAN, TOS
  • Network Management: Embedded controller can manage up to 50 local GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN APs; GWN Manager offers a premise-based software controller
  • Power and Green Energy Efficiency: PoE/PoE+ 802.3af/at; Max Power Consumption: 17.5W
  • Environmental:
    • Operation: -30°C to 70°C (-22°F to 158°F)
    • Storage: -40°C to 80°C (-40°F to 176°F)
    • Humidity: 100% (Weatherproof, IP67-rated)
  • Physical:
    • Unit Dimension: 260mm(L) x 251mm(W) x 56.6mm(H) (without antennas & bracket)
    • Unit Weight: 1.13kg (without antennas & bracket)
  • Package Content: GWN7664LR 802.11ax Wireless AP, Mounting Kits, Antennas, Quick Start Guide
  • Compliance: FCC, CE, RCM, IC, UKCA, Wi-Fi CERTIFIEDâ„¢ 6
  • Weatherproof Grade: IP67
