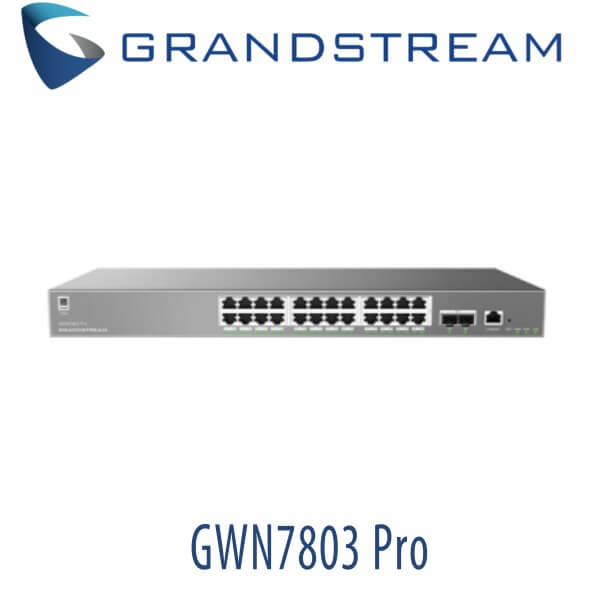

Grandstream GWN7803 Pro Dubai

The Grandstream GWN7803 Pro is the non-PoE model in Grandstream’s GWN7800 Pro Series — a next-generation family of Layer 2++ managed Gigabit switches announced in November 2025 and released starting late 2025/early 2026 (with the GWN7803 Pro specifically launching in January 2026). It offers significant upgrades over the original GWN7803/GWN7803P, including 10G SFP+ uplinks, doubled RAM/CPU resources, enhanced Layer 2++ features, and higher overall performance, making it well-suited for evolving Ghana business networks in mid-2026 — such as mid-sized offices, hotels, clinics, retail chains, co-working spaces, training centers, branch sites, or light industrial setups requiring faster aggregation, advanced segmentation, and future-proofing.

Description

Key Specifications (GWN7803 Pro)

Ports: 24 × Gigabit Ethernet RJ45 ports + 2 × 10G SFP+ uplinks (for high-speed fiber or copper aggregation to routers, core switches, or servers).
Switching Performance: Total non-blocking throughput 44 Gbps, switching capacity 88 Gbps, forwarding rate 65.472 Mpps, packet buffer 8.4 Mb, network latency <4 μs (store-and-forward mode).
PoE: Non-PoE model (no power output; for PoE needs, consider siblings like GWN7803PL Pro with 250W/30W per port PoE+ or GWN7803PH Pro with 400W/60W per port PoE++).
Hardware Enhancements (vs. original GWN7803 series): 256 MB RAM (double the original), 32 MB Nor Flash, single-core MIPS InterAptiv 1 GHz CPU (upgraded processing), low-latency design.
Layer 2++ Features: Advanced VLAN support (4K VLANs, QinQ, MAC/protocol-based, private VLAN), enhanced QoS (priority mapping, queue scheduling including SP/WRR/WFQ/SP-WRR/SP-WFQ, traffic shaping, rate limiting, Pro AV pending), IGMP/MLD Snooping, full STP/RSTP/MSTP/PVST(+)/RPVST(+) with up to 64 instances, LACP link aggregation (up to 32 groups, 8 members each), ERPS/GVRP (pending), jumbo frames up to 12,288 bytes.
Security & Reliability: IPv4/IPv6 dual-stack, ARP/NDP inspection, IP Source Guard, DoS protection, port security, 802.1X/MAC authentication, DHCP/DHCPv6 snooping, storm control, loop protection (BPDU/root/loopback), AAA (RADIUS/TACACS+), user hierarchical management.
Management: Embedded web-based controller, free GDMS cloud platform (multi-site visibility, firmware management, onboarding), GWN Manager on-premise software, integration with GWN routers, full CLI support, SNMPv1/v2c/v3, RMON, LLDP/LLDP-MED, backup/restore, syslog, diagnostics (ping/traceroute/mirroring/SPAN/RSPAN/UDLD/copper test).
Design & Environment: 2 fans (smart/quiet operation), 0–45°C operating temperature (ideal for Ghana’s warm/tropical conditions), standard 19″ rack-mount (kits included), desktop/wall options possible, surge protection (±6KV CM power, ±4KV CM network ports), ESD (±12KV contact), internal 100-240V power supply, max consumption ~21.4W.
Physical: Dimensions approx. 440mm(L) × 200mm(W) × 44mm(H), unit weight ~2.5–2.9 kg (varies by source), MTBF 70,000+ hours.

Compared to the classic GWN7803(P) (24 Gigabit ports + 4 × 1G SFP uplinks, 56 Gbps switching capacity, 41.66 Mpps forwarding, 128 MB RAM, single-core CPU, Layer 2+ only), the GWN7803 Pro delivers:

True 10G SFP+ uplinks (vs. 1G) for 10x faster backbone links.
Nearly double the switching/forwarding performance.
Layer 2++ enhancements (e.g., private VLAN, more STP instances, advanced VLAN/QoS).
Greater headroom for complex configs, heavier traffic, or larger networks.

This positions the GWN7803 Pro as an excellent upgrade or new-build choice for Ghana deployments needing high-speed uplinks, robust security/segmentation (e.g., VLANs for guest/voice/IoT), seamless Grandstream ecosystem integration (auto voice VLAN for IP phones, GDMS for multi-site management), and reliability in non-AC environments.

As the authorized Grandstream distributor/reseller for Ghana and West Africa, we stock or rapidly source the full GWN7800 Pro Series — including the GWN7803 Pro and PoE variants (GWN7803PL Pro / GWN7803PH Pro) — from our Accra warehouse. Benefit from same-day collection/dispatch in Accra, next-business-day to nearby areas, and 1–3 day nationwide delivery to Kumasi, Takoradi, Tamale, Tema, and all regions. Our services include site surveys, professional rack installation, tailored VLAN/QoS/voice VLAN configuration, GDMS onboarding, and team training.

In 2026, the GWN7803 Pro provides premium Layer 2++ performance and scalability within the affordable, proven Grandstream ecosystem — perfect for businesses transitioning from basic managed switches to more advanced, high-throughput networks. If you need PoE options, comparisons to other Pro models (e.g., GWN7806 series), or pricing/availability quotes, just let us know! Contact
