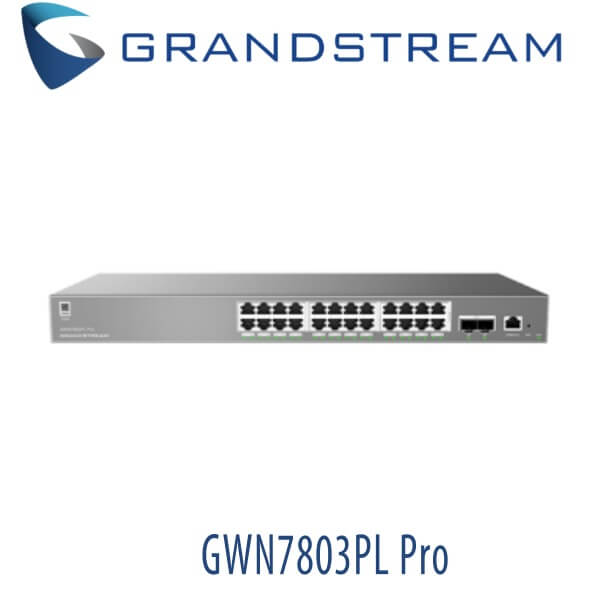

Grandstream GWN7803PL Pro Dubai

The Grandstream GWN7803PL Pro is the PoE+ model in Grandstream’s GWN7800 Pro Series — an advanced family of Layer 2++ managed Gigabit switches announced on November 26, 2025, with the GWN7803PL Pro released and available starting late 2025/early 2026 (available now as of March 2026). It offers enterprise-level upgrades over the original GWN7803P, including 10G SFP+ uplinks, doubled RAM/CPU resources, enhanced Layer 2++ features, higher performance, and smart PoE+ power management, making it an excellent fit for power-hungry Ghana business deployments in 2026 — such as mid-sized hotels, private clinics, retail chains, co-working spaces, training centers, branch offices, or light industrial sites powering Grandstream IP phones, Wi-Fi APs, IP cameras, and other PoE endpoints while providing fast aggregation and robust segmentation in tropical environments.

Description

Key Specifications (GWN7803PL Pro)

Ports: 24 × Gigabit Ethernet RJ45 ports (all PoE+) + 2 × 10G SFP+ uplinks (supports high-speed modules like SM-10G, MM-10G, RJ45-10G for fiber/copper aggregation).
Switching Performance: Total non-blocking throughput 44 Gbps, switching capacity 88 Gbps, forwarding rate 65.472 Mpps, packet buffer 8.4 Mb, network latency <4 μs (store-and-forward mode).
PoE: 24 PoE+ ports (IEEE 802.3af/at compliant), total PoE output power 250W, up to 30W per port (smart dynamic allocation via LLDP-MED, priority-based powering, user-defined schedules).
Hardware Upgrades (vs. original GWN7803P): 256 MB RAM (double), 32 MB Nor Flash, single-core MIPS InterAptiv 1 GHz CPU.
Layer 2++ Features: 4K VLANs (port-based, 802.1Q, QinQ, MAC/protocol-based, private VLAN), advanced QoS (priority mapping with 802.1p/DSCP/IP precedence, scheduling SP/WRR/WFQ/SP-WRR/SP-WFQ, traffic shaping, rate limiting; Pro AV pending), IGMP/MLD Snooping, STP/RSTP/MSTP/PVST(+)/RPVST(+) with up to 64 instances, LACP link aggregation (up to 32 groups, 8 members each), ERPS/GVRP (pending), jumbo frames up to 12,288 bytes.
Security & Reliability: IPv4/IPv6 dual-stack, ARP/NDP inspection, IP Source Guard, DoS protection, port security, 802.1X/MAC authentication, AAA (RADIUS/TACACS+), DHCP/DHCPv6 snooping, storm control, loop protection (BPDU/root/loopback), user hierarchical management.
Management: Embedded web controller, free GDMS cloud (multi-site visibility, firmware management, onboarding), GWN Manager on-premise software, GWN router integration, full CLI, SNMPv1/v2c/v3, RMON, LLDP/LLDP-MED, backup/restore, syslog, diagnostics (ping/traceroute/mirroring/SPAN/RSPAN/UDLD/copper test).
Design & Environment: 2 fans (smart/quiet operation), 0–45°C operating temperature (ideal for Ghana’s warm/tropical conditions), standard 19″ rack-mount (kits included), surge protection (±6KV CM power, ±4KV CM network ports), ESD (±12KV contact), internal 100-240V supply, max consumption ~299W (with full PoE load).
Physical: Dimensions approx. 440mm(L) × 200mm(W) × 44mm(H), unit weight ~2.7–3 kg (estimated based on series), MTBF 70,000+ hours.

Compared to the classic GWN7803P (24 Gigabit PoE+ ports + 4 × 1G SFP uplinks, 56 Gbps switching capacity, 41.66 Mpps forwarding, 128 MB RAM, total PoE 370–400W, Layer 2+ features), the GWN7803PL Pro delivers:

10G SFP+ uplinks (vs. 1G) for 10x faster backbone/aggregation links.
Higher switching/forwarding performance and doubled RAM/CPU for complex setups and dense traffic.
Layer 2++ enhancements (private VLAN, up to 64 STP instances, advanced VLAN/QoS/ACLs with up to 256 entries/4K ACE).
Larger MAC table (32K), more LAG groups (32 vs. 8), and efficient 250W PoE+ budget with smart control (suitable for typical 24-port PoE deployments powering phones/APs/cameras without excess overhead).

This makes the GWN7803PL Pro a powerful upgrade or new deployment choice for Ghana networks needing reliable PoE+ powering (e.g., for Grandstream endpoints with auto voice VLAN), 10G uplinks, advanced security/segmentation (VLANs for guest/voice/IoT), and free GDMS/GWN Manager management — all in non-AC telecom closets.

As the authorized Grandstream distributor/reseller for Ghana and West Africa, we stock or can quickly source the full GWN7800 Pro Series — including the GWN7803PL Pro (and higher-power sibling GWN7803PH Pro with 400W/60W PoE++ if needed) — from our Accra warehouse. Same-day collection/dispatch in Accra, next-business-day nearby, 1–3 day nationwide delivery to Kumasi, Takoradi, Tamale, Tema, and regions. Services: site surveys, professional rack installation, custom VLAN/QoS/voice VLAN setup, GDMS onboarding, team training. Contact
