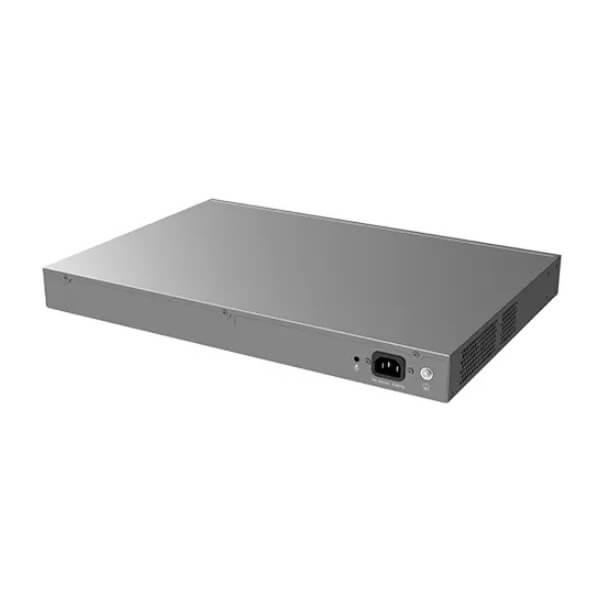

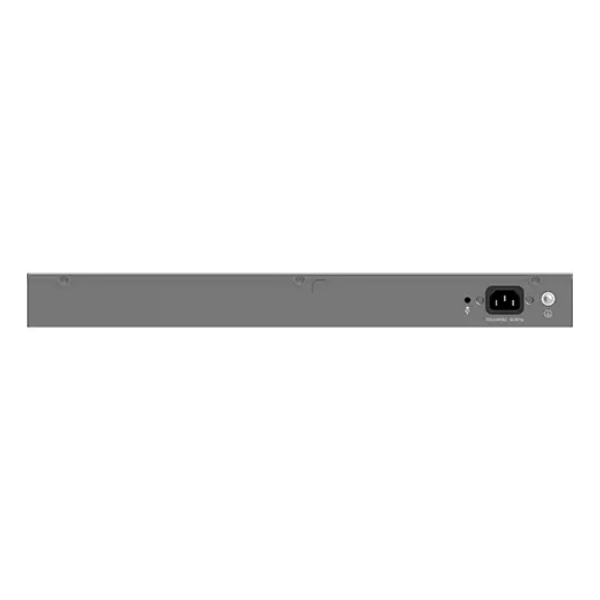

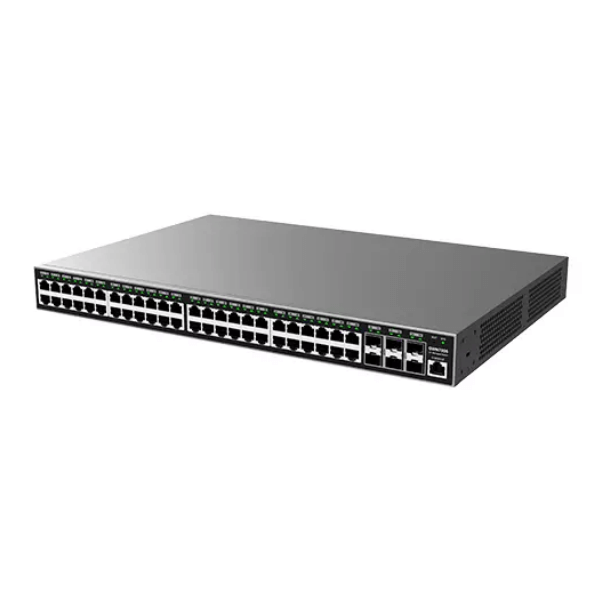

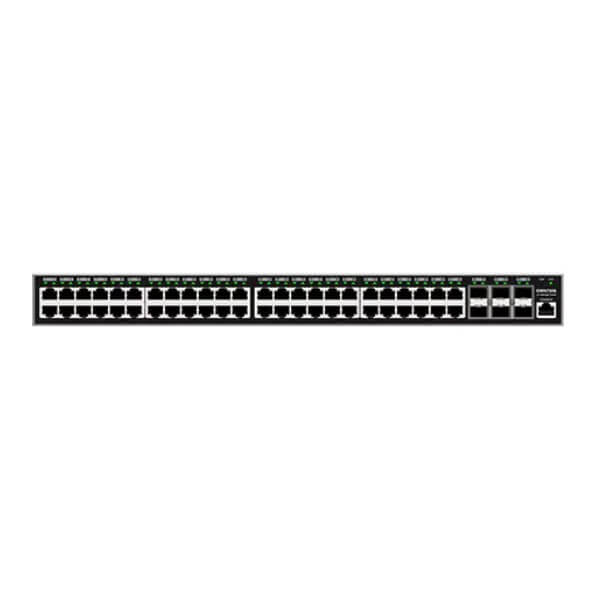

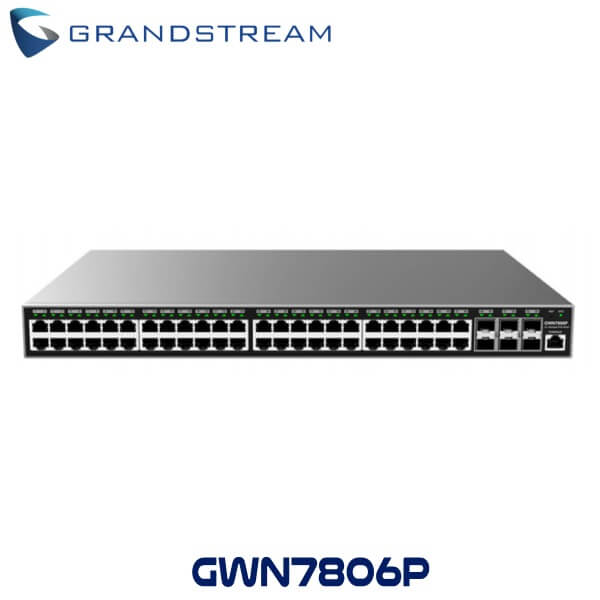

Grandstream GWN7806P PoEplus Managed Switch
Grandstream GWN7806P PoEplus Managed Switch - Image 2
Grandstream GWN7806P PoEplus Managed Switch - Image 3
Grandstream GWN7806P PoEplus Managed Switch - Image 4
Grandstream GWN7806P PoEplus Managed Switch - Image 5

Grandstream GWN7806P PoEplus Managed Switch

Grandstream GWN7806P: Ultra-High-Density PoE+ Layer 2+ Managed Switch for Dubai’s Largest Enterprises and Data Centers

The Grandstream GWN7806P is an ultra-high-density Layer 2+ managed PoE+ network switch, meticulously engineered to power and connect the most demanding and expansive network infrastructures of the largest enterprises, service providers, and data centers in Dubai and Abu Dhabi. As the most powerful PoE+ offering in the GWN7800 series, the GWN7806P features an unparalleled 48 Gigabit Ethernet ports, all equipped with IEEE 802.3af/at PoE+ capabilities, delivering up to 30W per port with an exceptionally high total PoE power budget of 740W. This makes it the ultimate solution for powering a vast array of high-consumption IP devices, including advanced multi-radio Wi-Fi 6/6E/7 access points, sophisticated 4K/8K pan-tilt-zoom (PTZ) IP surveillance cameras, and feature-rich VoIP desktop phones and video conferencing systems, which are integral to modern, large-scale operations across the UAE. The switch also incorporates an impressive 6 Gigabit SFP+ (10GbE) uplink ports, providing robust and flexible ultra-fast fiber connectivity essential for connecting to core network infrastructure, linking multiple buildings in extensive campus environments, or aggregating traffic from other switches. The GWN7806P supports highly advanced VLAN configurations for precise traffic segmentation and enhanced security, alongside comprehensive Quality of Service (QoS) to meticulously prioritize critical network traffic such as real-time financial transactions, high-definition video streaming, and mission-critical enterprise applications, ensuring flawless performance for businesses in Dubai. An extensive suite of cutting-edge security features, including ARP Inspection, IP Source Guard, sophisticated DoS attack prevention, and IEEE 802.1X authentication, provides unparalleled protection for enterprise networks in Abu Dhabi against a wide spectrum of evolving cyber threats. Management is made both powerful and intuitive through a local web UI, the complimentary GDMS cloud platform, and GWN Manager, offering administrators in the UAE centralized and comprehensive control over their entire network. The GWN7806P stands as the definitive solution for organizations seeking an ultra-reliable, exceptionally high-performance, and deeply secure managed PoE+ switch to underpin their most critical and expansive operations and drive future technological innovation.

Categories: ,

Description

Grandstream GWN7806P PoE+ Managed Switch in Dubai | Ultra-High-Density Enterprise Power UAE

GWN7806P: The Undisputed Powerhouse for Dubai’s Most Ambitious, High-Density PoE+ Deployments

The Grandstream GWN7806P Dubai Layer 2+ managed PoE+ switch is, without exaggeration, the undisputed powerhouse engineered to fuel the most ambitious and high-density Power over Ethernet Plus (PoE+) deployments for mega-enterprises, critical infrastructure projects, and sprawling smart city initiatives in Dubai. This colossus of network switching is equipped with an extraordinary 48 Gigabit Ethernet ports, every single one delivering full IEEE 802.3af/at PoE+ compliance, and is further augmented by an impressive 6 Gigabit SFP+ (10GbE) uplink ports for ultra-high-speed fiber optic connectivity. The defining characteristic of the Grandstream GWN7806P Dubai is its truly monumental total PoE power budget of 740W, a figure that enables it to simultaneously energize an unprecedented number of high-consumption IP devices. This makes it the definitive, go-to solution for the largest and most complex deployments in Abu Dhabi and across the UAE, including city-wide IP surveillance networks with thousands of advanced 4K/8K PTZ cameras, massive deployments of next-generation Wi-Fi 6/6E/7 access points in stadiums or convention centers, and comprehensive VoIP and unified communication systems supporting tens of thousands of users with feature-rich desktop phones and immersive video conferencing endpoints. The GWN7806P’s capability to deliver up to 30W of reliable power per port ensures that even the most power-demanding devices, such as high-power outdoor access points or sophisticated industrial sensors, operate flawlessly and consistently. This dramatically simplifies the planning and execution of complex installations, significantly reducing the need for separate power cabling and associated infrastructure costs for enterprises and public sector organizations in Dubai. The switch’s awe-inspiring switching capacity of 216Gbps and its exceptionally high forwarding rate of 160.7Mpps guarantee unparalleled data throughput and ultra-low latency, ensuring that network performance remains consistently exceptional and highly responsive, even under the most extreme and sustained traffic conditions encountered in the largest and most dynamic UAE-based operations. This raw power is critical for supporting real-time applications, massive data transfers, and the seamless operation of countless connected devices.

The Grandstream GWN7806P Dubai excels in providing exceptionally granular network segmentation and sophisticated traffic management through its comprehensive Layer 2+ feature set, which is essential for managing the complexity of ultra-large-scale networks. It supports extensive and highly flexible VLAN (Virtual LAN) capabilities, allowing network architects and administrators in the UAE to create a vast number of logically isolated virtual networks. This meticulous segmentation is absolutely paramount for enhancing security within sprawling enterprise environments. For instance, it allows for the complete isolation of sensitive financial transaction systems from general corporate user traffic, the creation of dedicated and secure VLANs for critical public safety infrastructure (like emergency communication systems or traffic management networks), or the segregation of guest Wi-Fi networks from internal operational networks. This not only fortifies the overall security posture by effectively containing potential threats within specific, defined segments but also significantly optimizes network performance by drastically reducing unnecessary broadcast domains and streamlining data flow across the network. Furthermore, the Grandstream GWN7806P Dubai incorporates highly sophisticated and configurable Quality of Service (QoS) mechanisms. This empowers businesses and public sector entities in Abu Dhabi to define and rigorously enforce precise traffic prioritization policies, ensuring that mission-critical applications – such as uninterrupted real-time emergency services communications, flawless high-definition city-wide surveillance feeds, seamless operation of critical industrial control systems (ICS), and reliable access to vital cloud-hosted government or enterprise resource planning (ERP) systems – consistently receive the highest priority for bandwidth allocation and ultra-low latency. Such fine-grained and intelligent traffic control is indispensable for maintaining peak operational efficiency, facilitating flawless and reliable communication across all services, and delivering an uncompromised and superior user experience for all citizens, employees, and stakeholders. As a leading Grandstream distributor in Dubai, we recognize the GWN7806P’s unmatched power, density, and intelligence as absolutely essential for building the resilient, hyper-scalable, and future-proof network backbones required by the largest, most ambitious, and most critical enterprises and smart city initiatives in the competitive and visionary UAE market.

GWN7806P: The Unrivaled PoE+ Colossus for Abu Dhabi’s Most Expansive and Power-Hungry Networks

The Grandstream GWN7806P Dubai Layer 2+ managed PoE+ switch is, without any hyperbole, an unrivaled colossus of network engineering, specifically designed to energize and connect the most expansive, power-hungry, and mission-critical network deployments for premier enterprises, large-scale public infrastructure, and advanced smart city projects in Abu Dhabi. This absolute flagship of PoE+ technology is armed with an extraordinary 48 Gigabit Ethernet ports, each delivering full IEEE 802.3af/at PoE+ compliance, and is further fortified by an impressive array of 6 Gigabit SFP+ (10GbE) uplink ports, providing ultra-high-speed fiber optic backhaul and aggregation capabilities. The truly defining feature of the Grandstream GWN7806P Dubai is its monumental total PoE power budget of 740W, a capacity that empowers it to simultaneously drive an unprecedented density of high-consumption IP devices. This positions it as the ultimate, non-negotiable solution for the most ambitious and demanding deployments in Dubai and across the UAE. Consider, for example, city-wide intelligent transportation systems with thousands of interconnected sensors and high-definition cameras, massive deployments of next-generation Wi-Fi 6/6E/7 access points in international airports or mega-malls, and comprehensive unified communication and collaboration (UCC) platforms supporting tens of thousands of users with sophisticated desktop video phones and immersive telepresence suites. The GWN7806P’s unwavering ability to deliver up to 30W of reliable, consistent power per port ensures that even the most power-intensive devices, such as advanced robotic systems in automated warehouses, high-power long-range outdoor wireless bridges, or sophisticated environmental monitoring sensors, operate flawlessly and without interruption. This capability dramatically simplifies the architectural design and physical installation of complex, large-scale systems, significantly reducing the reliance on distributed power outlets and extensive electrical cabling, thereby lowering infrastructure costs and deployment times for enterprises and public sector entities in Abu Dhabi. The switch’s awe-inspiring total non-blocking throughput of 108Gbps and its colossal switching capability of 216Gbps, coupled with a high forwarding rate of 160.7Mpps, guarantee unparalleled data throughput and consistently ultra-low latency. This ensures that network performance remains exceptionally responsive and robust, even under the most extreme, fluctuating, and sustained traffic conditions encountered in the largest, most critical, and most dynamic UAE-based operations. This sheer power and capacity are fundamental for supporting real-time data analytics, massive cloud data synchronization, and the seamless, uninterrupted operation of countless interconnected devices that form the backbone of modern digital enterprises and smart city ecosystems.

The Grandstream GWN7806P Dubai excels in providing exceptionally granular network segmentation and highly sophisticated traffic management through its comprehensive and advanced Layer 2+ feature set, which is absolutely essential for effectively managing the inherent complexity and scale of ultra-large-scale network deployments. It supports extensive, highly flexible, and dynamic VLAN (Virtual LAN) capabilities, allowing network architects and seasoned administrators in the UAE to create and manage a vast number of logically isolated virtual networks with surgical precision. This meticulous and granular segmentation is absolutely paramount for enhancing the security posture within sprawling enterprise environments and critical infrastructure. For instance, it enables the complete and verifiable isolation of highly sensitive financial transaction processing systems from general corporate user traffic, the creation of dedicated, hardened, and secure VLANs for critical public safety infrastructure (such as emergency services communication networks or city-wide surveillance systems), or the stringent segregation of public-facing guest Wi-Fi networks from internal operational technology (OT) and corporate IT networks. This not only fortifies the overall security posture by effectively containing and isolating potential threats within specific, defined segments, thereby limiting their potential impact, but also significantly optimizes overall network performance by drastically reducing unnecessary broadcast domains, minimizing network congestion, and streamlining critical data flow pathways across the entire network. Furthermore, the Grandstream GWN7806P Dubai incorporates highly sophisticated, multi-stage, and configurable Quality of Service (QoS) mechanisms. This empowers businesses, government agencies, and public sector entities in Dubai to define, implement, and rigorously enforce precise traffic prioritization policies, ensuring that mission-critical applications – such as uninterrupted real-time emergency services dispatch systems, flawless high-definition city-wide public safety surveillance feeds, seamless operation of critical industrial control systems (ICS) and SCADA networks, and reliable, high-availability access to vital cloud-hosted government e-services or enterprise resource planning (ERP) systems – consistently receive the highest possible priority for bandwidth allocation and the lowest achievable latency. Such fine-grained, intelligent, and adaptive traffic control is indispensable for maintaining peak operational efficiency, facilitating flawless and reliable communication across all essential services, and delivering an uncompromised, superior, and consistent user experience for all citizens, employees, partners, and stakeholders. As a leading and deeply experienced Grandstream distributor in Abu Dhabi, we recognize the GWN7806P’s unmatched power, unparalleled port density, extreme PoE+ budget, and profound intelligence as absolutely essential for building the resilient, hyper-scalable, and truly future-proof network backbones required by the largest, most ambitious, and most critical enterprises, smart city initiatives, and national infrastructure projects in the competitive, visionary, and rapidly evolving UAE market.

GWN7806P: The Definitive PoE+ Engine for UAE’s Smart Cities and Hyper-Connected Enterprises of Tomorrow

The Grandstream GWN7806P Dubai Layer 2+ managed PoE+ switch is unequivocally engineered as the definitive, future-ready PoE+ engine, designed to power the hyper-connected smart cities, sprawling industrial complexes, and the most technologically advanced enterprises of tomorrow across the UAE. Its extraordinary combination of ultra-high port density – featuring an unparalleled 48 Gigabit Ethernet PoE+ ports and 6 SFP+ (10GbE) uplink ports – alongside a colossal 740W PoE power budget, provides an exceptionally robust, massively scalable, and profoundly adaptable foundation. This is perfectly suited not only for today’s most intensive and power-hungry operational demands in Dubai but also offers virtually limitless capacity for future technological evolution, exponential device proliferation, and the integration of next-generation AI-driven applications. This makes the Grandstream GWN7806P Dubai a profoundly strategic, visionary, and enduring long-term investment for organizations and municipalities aiming to seamlessly integrate an ever-expanding and increasingly complex ecosystem of users, sophisticated high-performance servers, advanced autonomous systems, and an explosion of bandwidth-intensive IoT, IIoT (Industrial IoT), and edge computing devices. The switch’s truly formidable architecture, highlighted by its total non-blocking throughput of 108Gbps and a colossal switching capability of 216Gbps, ensures that the network can consistently and effortlessly handle even the most extreme, unpredictable, and sustained data traffic surges without any discernible compromise in performance, speed, responsiveness, or reliability. This inherent, massive scalability is a critical, decisive strategic advantage for businesses and smart city initiatives in Abu Dhabi that operate within highly dynamic, fiercely competitive global landscapes, where the agility to adapt, innovate, and rapidly scale network resources and power delivery is not merely beneficial but a fundamental prerequisite for sustained success, global leadership, and pioneering new technological frontiers. As a premier Grandstream distributor in Dubai, we confidently champion the Grandstream GWN7806P Dubai as the definitive cornerstone solution for constructing hyper-resilient, exceptionally adaptable, and enduring enterprise and smart city network backbones. This significantly minimizes the necessity for frequent, disruptive, and costly hardware forklift upgrades, thereby providing a steadfast, reliable, and truly future-proof platform for continuous innovation, comprehensive digital transformation, and sustained, unconstrained expansion in the vibrant, ambitious, and globally influential UAE marketplace.

The Grandstream GWN7806P Dubai also incorporates a comprehensive suite of intelligent features that significantly contribute to enhanced operational efficiency, tangible and substantial cost savings, and long-term environmental sustainability for enterprises and smart city deployments across the UAE. Its advanced and dynamic PoE power management capabilities ensure that each of the 48 PoE+ ports delivers precisely the optimal amount of power required by the connected device, efficiently utilizing the massive 740W total power budget while protecting connected devices from over or under-powering. This intelligent power allocation, combined with robust support for Energy-Efficient Ethernet (IEEE 802.3az), empowers the switch to intelligently and dynamically reduce its power consumption during periods of lower network activity or when specific ports are inactive or connected to EEE-compliant devices. This crucial feature not only helps organizations in Dubai achieve considerable and welcome reductions in their ongoing operational energy expenditure, contributing positively to their financial bottom line and reducing their carbon footprint, but also strongly aligns with increasingly important national and international corporate social responsibility (CSR) mandates, ambitious sustainability initiatives, and global environmental stewardship goals. The Grandstream GWN7806P Dubai is meticulously designed for unwavering, carrier-grade reliability, featuring redundant, hot-swappable power supply units (PSUs) to ensure maximum uptime, continuous service availability, and business continuity for mission-critical services and essential public infrastructure. Its robust thermal design, incorporating smart fan control, and the use of high-quality, industrial-grade components further enhance overall system longevity and resilience, even in the most demanding and harsh data center or outdoor cabinet environments. The switch’s comprehensive and advanced feature set – encompassing sophisticated VLAN capabilities for meticulous and secure traffic segmentation, robust Quality of Service (QoS) for effective and granular traffic prioritization, and extensive, multi-layered security protocols – provides network architects and administrators in Abu Dhabi with all the necessary tools to build a network that is not only exceptionally high-performing but also remarkably secure, highly resilient, and readily adaptable to evolving cyber threats and changing operational requirements. The profound ease of management offered through Grandstream’s complimentary and powerful centralized platforms, GWN.Cloud and GWN Manager, further streamlines and simplifies complex network administration tasks, significantly reducing the IT operational burden and associated lifecycle costs for enterprises and smart city operators throughout the UAE. By selecting the GWN7806P, organizations are making a definitive and transformative investment in a supremely dependable, highly efficient, and exceptionally scalable networking solution that will robustly support their evolving needs and facilitate their seamless adoption of future technological advancements for many years, if not decades, to come. As a leading and trusted Grandstream supplier in UAE, we are unequivocally confident that the GWN7806P delivers an unparalleled combination of cutting-edge performance, an extensive and rich feature set, and compelling long-term value, firmly establishing it as the ideal and definitive choice for visionary, large-scale enterprises, critical infrastructure, and the smart cities of tomorrow.

GRANDSTREAM GWN7806P – Specifications

  • Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
  • PoE Standards: IEEE 802.3af/at
  • Gigabit Ethernet Ports: 48 (all support PoE/PoE+)
  • Gigabit SFP Ports: N/A
  • Gigabit SFP+ Ports: 6 (10GbE)
  • Console Port: 1
  • Number of PoE Ports: 48
  • Integrated Power Supply: Dual 450W AC/DC (Redundant)
  • Max Output Power per PoE Port: 30W
  • Max Total PoE Output Power: 740W
  • Surge Protection: ± 6KV Common Mode (CM) and Differential Mode (DM) for power; ± 4KV CM for network ports
  • ESD Protection: ± 12KV for contact discharge
  • Auxiliary Ports: 1x Reset Pinhole
  • Forwarding Mode: Store-and-forward
  • Total Non-blocking Throughput: 108Gbps
  • Switching Capability: 216Gbps
  • Forwarding Rate:7Mpps
  • Packet Buffer: 12Mb
  • Network Latency: Average < 4µs
  • Switching Features:
    • 16K static, dynamic and filtering MAC addresses
    • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
    • VLAN virtual interface
    • GVRP (pending)
    • 12 link aggregation groups
    • Spanning tree, 64 instances for STP/RSTP/MSTP
  • Multicast: IGMP Snooping, MLD Snooping, MVR
  • QoS/ACL:
    • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
    • Port priority
    • Priority mapping
    • Queue scheduling: SP, WRR, WFQ, SP-WRR and SP-WFQ
    • Traffic shaping
    • Rate limit
    • 2K ACL for Ethernet, IPv4 and IPv6
  • DHCP: DHCP server, DHCP relay, Option 82, 60, 160 and 43
  • Maintenance: CPU and memory monitoring, SNMP, RMON, LLDP & LLDP-MED, backup and restore, syslog, alert, diagnostics (Ping, Traceroute, port mirroring, UDLD – TBD, copper test)
  • Security Features:
    • User hierarchical management and password protection, HTTPS, SSH, Telnet
    • 1X authentication
    • AAA authentication including RADIUS, TACACS+
    • Storm control
    • Port isolation, port security, sticky MAC
    • Filtering MAC address
    • IP source guard, DoS attack prevention, ARP inspection
    • DHCP Snooping
    • Loop protection including BPDU protection, root protection and loopback protection
    • Kensington Security Slot (Kensington Lock) support
  • LEDs: 1x tri-color LED for device tracking and status indication, 54x green-color LEDs for data ports
  • Fan: 3 (Smart Fan Control)
  • Environmental:
    • Operation: 0°C to 45°C, humidity 10-90% RH (Non-condensing)
    • Storage: -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
  • Dimensions: 440mm(L) x 350mm(W) x 44mm(H)
  • Unit Weight:5Kg
  • Mounting: Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included)
  • Package Content: 1x Switch, 2x 1.2m (10A) AC Cables, 8x screws, 1x Ground Cable, 4x Rubber Feet, 1x Quick Installation Guide, 2x Power Cord Anti-Trip, 2x Extended Rack-Mounting Kits
  • Compliance: FCC, CE, RCM, IC, UKCA
